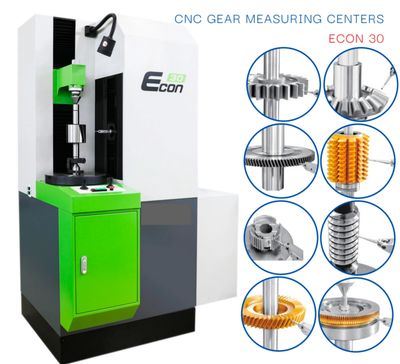

ECON30 CNC Gear Measuring Machine
ECON 30 Feature
- Compact construction of basic machine and high measuring accuracy.
- The gear measuring Centre is provided with a 4-axis measuring system with high precision TESA inductive probe and ball rolling guide . This system measurement accuracy and stability are greatly improved
- Full-closed-loop CNC system based on advanced motion control card , DDR and DDL motors is designed and developed
- This measuring machine allows easy-to-operate inspection of all test items in one set-up .
- Fully automatic measuring cycle is controlled by the computer with high measuring efficiency . Customized tooth selection for profile and lead test is possible.
- The evaluation range of measurement curve is defined by a mouse drag operation .
- The measuring velocities can also be controlled in the software
- Powerful and versatile measuring software functions : The measuring item can be selected according to the workpiece to be tested .
- This user friendly measuring software allows automatic evaluation of cylindrical gears in accordance with GB10095 , DIN3962 , ISO1328 or AGMA standard .
- The measuring assessments including tolerance bands for profile and helix testing (evaluations of K charts) , profile barreling (Ca), and tooth crowning (Cb) are also available .
Technical Specifications
- Gear Module : 0.5 - 15
- Maximum Gear Diameter: 300 mm
- Distance Between Center: 15 - 500 mm
- Helix Angle : 0 - 90°
L 30 & L45 B Feature
The L30A / L45B Gear Measuring Machine is a high-precision, high-efficiency inspection system designed for comprehensive measurement and evaluation of a wide range of gears and gear-related components. It is capable of inspecting cylindrical gears, circular arc gears, straight and spiral bevel gears, cycloidal gears, rotors, gear hobs, shaping cutters, and shaving cutters. The advanced measurement software provides automatic gear evaluation and comprehensive test report generation in accordance with current international standards, ensuring reliable quality control and consistent measurement results.
Key Feature
- High Measurement Accuracy & Efficiency Delivers precise and efficient measurement performance for demanding gear inspection applications.
- Advanced Measurement Software Powerful software enables comprehensive gear analysis, automatic evaluation, data processing, and inspection report generation.
- User-Friendly Operation Intuitive measurement interfaces and simplified operating procedures enable convenient and efficient machine operation.
- Integrated 3D Digital Probe Equipped with an advanced 3D digital probe for high-precision data acquisition and detailed component inspection.
- Linear Motor Drive Technology Linear motor technology provides high-speed, smooth, and precise axis movement, enhancing overall measurement performance.
- Multi-Axis Motion Control Advanced multi-axis motion control technology enables accurate measurement of complex gear geometries and profiles. Large Measuring Stroke & Offset Compensation
- Extended measuring stroke with advanced offset correction - provides greater flexibility when inspecting components of varying sizes and geometries.
- Complex Component Analysis Capable of performing detailed and sophisticated analysis of critical components used in RV reducers, supporting precision manufacturing and quality assurance.
- Automatic Evaluation & Reporting Automatically evaluates measurement results and generates comprehensive inspection reports according to current international standards.
- Wide Range of Applications Suitable for inspection of gears, cutters, hobs, rotors, and other precision transmission components across various industrial application
Technical Specifications
- Gear Module : 0.5 - 15
- Maximum Gear Diameter: 300 mm
- Distance Between Center: 15 - 500 mm
- Helix Angle : 0 - 90°
